Marquis K814 Specifications.

ASUS A8N-E ATX motherboard

AMD® Athlon® 64 processor, .13 or .09 micron, 512K or 1M L2 cache, 800mhz or 1Ghz HyperTransport Link, Socket 939

AMD® Athlon® 64 FX, 13 or .09 micron, 512K or 1M L2 cache, 800mhz or 1Ghz HyperTransport Link, Socket 939

AMD® Athlon® 64 X2 processor, .09 micron, 1M+1M L2 cache, 1Ghz HyperTransport Link, Socket 939, dual core

64-bit integer registers, 128-bit SSE/SSE2 registeres
48-bit virtual addresses, 40-bit physical addresses
AMD 64-bit x86 instruction set extensions

Nvidia® nForce 4 Ultra

Memory Subsystem:
Four DIMM banks supporting up to 4GB1 PC-3200 unbuffered ECC SDRAM memory, single or dual channel (128-bit) memory access

Note: 128-bit memory access requires even number of memory modules.

Graphic Subsystem:
ASUS Extreme N6200TC256/TD, Nvidia® GeForce PCX6200TC, PCI-Express x16, 64MB DDR, 350MHZ core, 350mhz DDR memory, 1x400Mhz RAMDAC, 1 DVI port, 1 Analog port (DB-15), TV-Out2 (SVHS), Single Head display

Hard Disk Subsystem:
(Marquis K814-T) Hitachi Desktar 7K80 80GB Serial ATA II drive, 7200rpm, 8MB cache

SCSI Subsystem:
Onboard nForce4 Serial ATA II controller, four SATA300 ports

ATA Subsystem:
Dual channel Ultra ATA/133 bus mastering IDE controllers

CD-ROM Subsystem:
Combo DVD-ROM (16X) and CDROM (52X)/CDR (52X)/RW(24X) drive

Sound Subsystem:
Onboard Realtek ACL850 8-channel3 audio

Network Subsystem:
Onboard nForce4 Gigabit Ethernet adapter

System Slots:
One (1) PCI Express x16 slot
Two (2) PCI Express x1 slots
One (1) PCI Express x4 slot (maximum 1GB/s bandwidth)
Three (3) 32-bit/33MHz bus mastering PCI slots

System I/O:
One (1) ECP/EPP Bi-directional parallel port
Four (4) USB 2.0 ports (rear)
Two (2) USB 2.0 ports (front)
One (1) PS/2 Mini DIN keyboard port
One (1) PS/2 Mini DIN mouse port
One (1) RJ-45 Ethernet port
Line-In, Line-Out, Microphone, 2xRear Speakers2, 1xCenter/Subwoofer2
Optical S/PDIF Out port2
Coaxial S/PDIF Out port2

Floppy Drive:
1.44M 3.5-inch drive4

Logitech Optical Wheel Mouse, PS/2

Keytronic KT-2000 104-key PS/2 keyboard

ATX Mid Tower case, FCC Class B, black bezel (standard) / beige (optional)
Sample Chassis Images (shown in beige color):

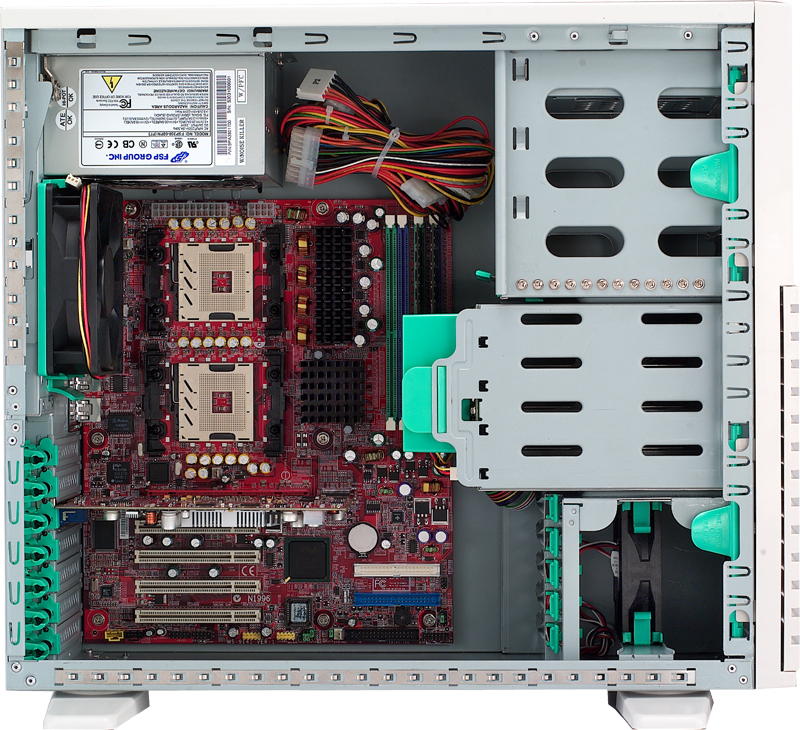

     Front View, Front View w/ Hotswap Backplane, Side View w/ Hotswap Backplane
Two (2) front accessible USB 2.0 ports
Security locks for the front panel and side panel
400W ATX12V v2.0 power supply, 12cm fan, low noise
Three (3) accessible 5.25" drive bays
Four (4) internal 3.5" fixed drive bays (optional hotswap SATA/SCSI backplane)
One (1) 12cm outtake fan, ball bearing
One (1) 9cm HD cooling fan, ball bearing
Dimensions: 465mm (D) x 198mm (W) x 425mm (H)

Preinstalled Software:
Red Hat Linux with ASL optimized kernel

  1. Even though the chipset supports 4GB, nearly 1GB is lost due to resource allocations. As a result, a 4GB configuration can only yield 3GB of usable memory space.
  2. Feature not supported under Linux.
  3. Only the basic audio output is supported under Linux.
  4. Floppy drive occupies one of the 5.25in drive bay.
