Eight 2-way Intel Xeon Scalable Processor application servers in ultra compact 4U

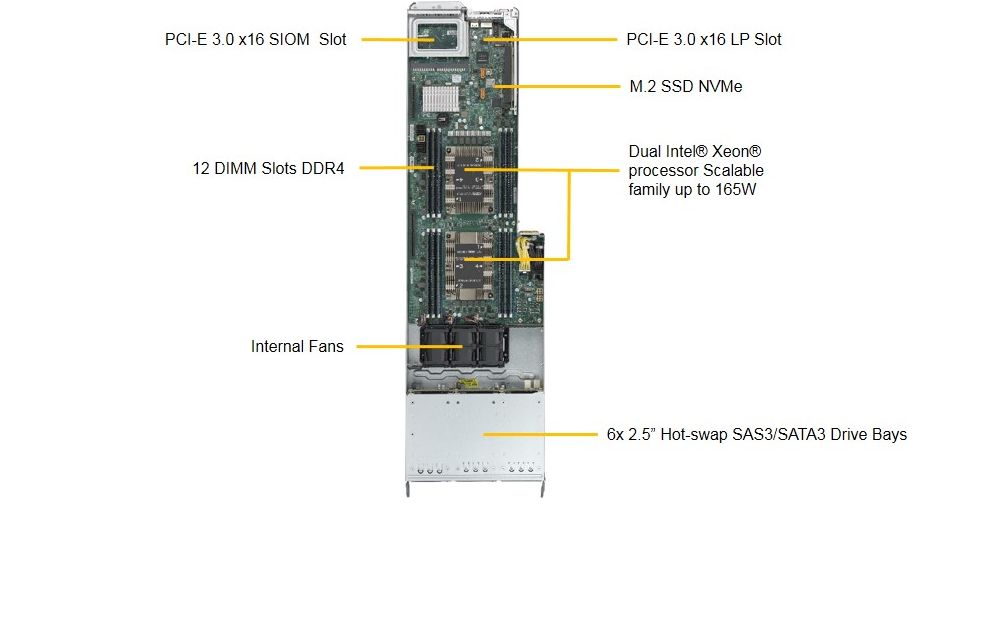

- Eight hotplug dual-processor nodes to maximize rack space
- Intel C621 chipset providing excellent performance and stability
- Up to sixteen Intel Xeon Scalable Processor series processors (2 per node)
- Up to 448 cores and 38.5MB L3 cache
- Up to 10.4GT/s QuickPath Interconnect
- Up to 12TB DDR4 ECC registered memory
- Six Channel memory busses
- 96 DIMM slots for optimal expansion (12 per node)
- Interchangeable Ethernet interface via SIOM interface
- Intel i350 1Gbe or X550 10Gbe
- Mellanox ConnectX-4 25Gbe or ConnectX-3 Pro Infiniband FDR56

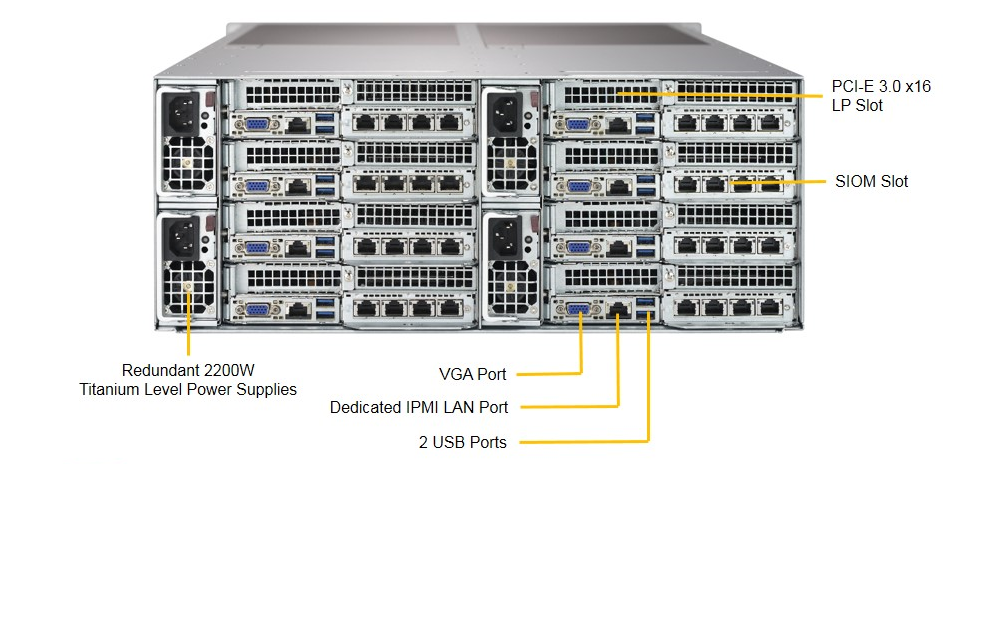

- 4U rack with hotswap & redundant power supply
- High efficiency Titanium Level power supply
- Forty eight hotswap 2.5in hard drive bays (6 per node)
- Eight PCI-E v3 low profile slots (2 per node)
- High-efficiency redundant & hotswap power supply
- Front panel system LED indicators
- Real time monitoring of system health status
- Serial Console Redirection for remote management
- Onboard Remote Server Management over LAN using IPMI 2.0
- 64-bit Linux operating system
Three year limited warranty
full specs tech notes
Compare all ASL Lancelot models
|
Lancelot 4885-T |
Lancelot 4885-SS |
Lancelot 4885-SR |
Processor |
2 x Xeon® Silver 4208 (8-core) |
2 x Xeon® Silver 4208 (8-core) |
2 x Xeon® Silver 4208 (8-core) |
Memory |
48GB DDR4-2933 ECC registered |
48GB DDR4-2933 ECC registered |
48GB DDR4-2933 ECC registered |
Network Controller |
8 x Intel i350-AM2 dual-port Gigabit (SIOM) |
8 x Intel i350-AM2 dual-port Gigabit (SIOM) |
8 x Intel i350-AM2 dual-port Gigabit (SIOM |
Storage Controller |
Onboard C621 PCH SATA 6Gbs |
LSI 3008 SAS3/SATA 12Gbps controller |
LSI 3108 SAS3/SATA 12Gbps RAID controller |
Starting Price |
|
|
|
