photo of Lancelot 2885

Lancelot 2885

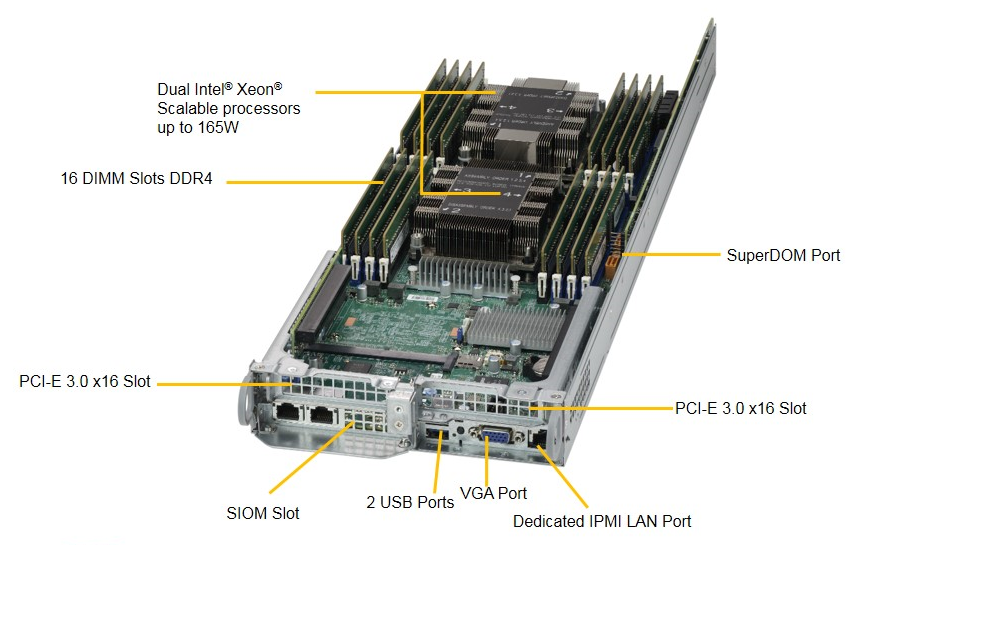

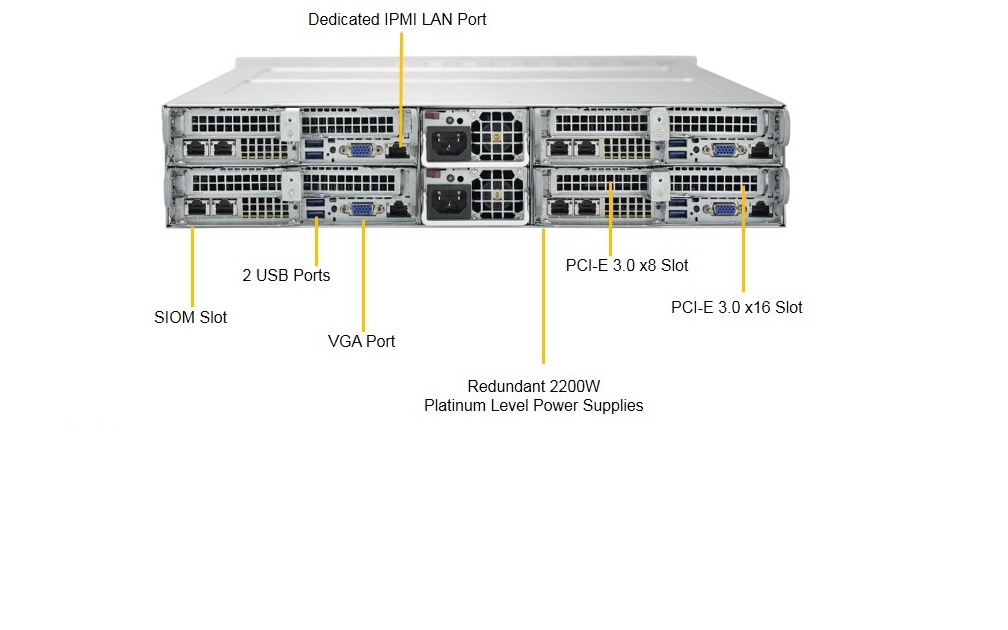

Rear View Node View

Four 2-way Intel Xeon Scalable Processor application servers in ultra compact 2U

  • Four hotplug dual-processor nodes to maximize rack space
  • Intel C621 chipset providing excellent performance and stability
  • Up to eight Intel Xeon Scalable Processor series processors (2 per node)
    • Up to 224 cores and 38.5MB L3 cache
    • Up to 10.4GT/s QuickPath Interconnect
  • Up to 8TB DDR4 ECC registered memory
    • Six Channel memory busses
    • 64 DIMM slots for optimal expansion (16 per node)
  • Interchangeable Ethernet interface via SIOM interface
    • Intel i350 1Gbe or X550 10Gbe
    • Mellanox ConnectX-4 25Gbe or ConnectX-3 Pro Infiniband FDR56
  • 2U rack with hotswap & redundant power supply
    • High efficiency Titanium Level power supply
    • Twelve hotswap hard drive bays (3 per node)
    • Eight PCI-E v3 low profile slots (2 per node)
    • High-efficiency redundant & hotswap power supply
    • Front panel system LED indicators
  • Real time monitoring of system health status
  • Serial Console Redirection for remote management
  • Onboard Remote Server Management over LAN using IPMI 2.0
  • 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Lancelot models

Lancelot 2885-T Lancelot 2885-SS Lancelot 2885-SR
Processor 2 x Xeon® Silver 4108 (8-core) 2 x Xeon® Silver 4108 (8-core) 2 x Xeon® Silver 4108 (8-core)
Memory 48GB DDR4-2666 ECC registered 48GB DDR4-2666 ECC registered 48GB DDR4-2666 ECC registered
Network Controller 4 x Intel i350-AM2 dual-port Gigabit (SIOM) 4 x Intel i350-AM2 dual-port Gigabit (SIOM) 4 x Intel i350-AM2 dual-port Gigabit (SIOM
Storage Controller Onboard C621 PCH SATA 6Gbs LSI 3008 SAS3/SATA 12Gbps controller LSI 3108 SAS3/SATA 12Gbps RAID controller
Starting Price
$6,589
$6,909
$7,468
