photo of Lancelot 1196

Lancelot 1196

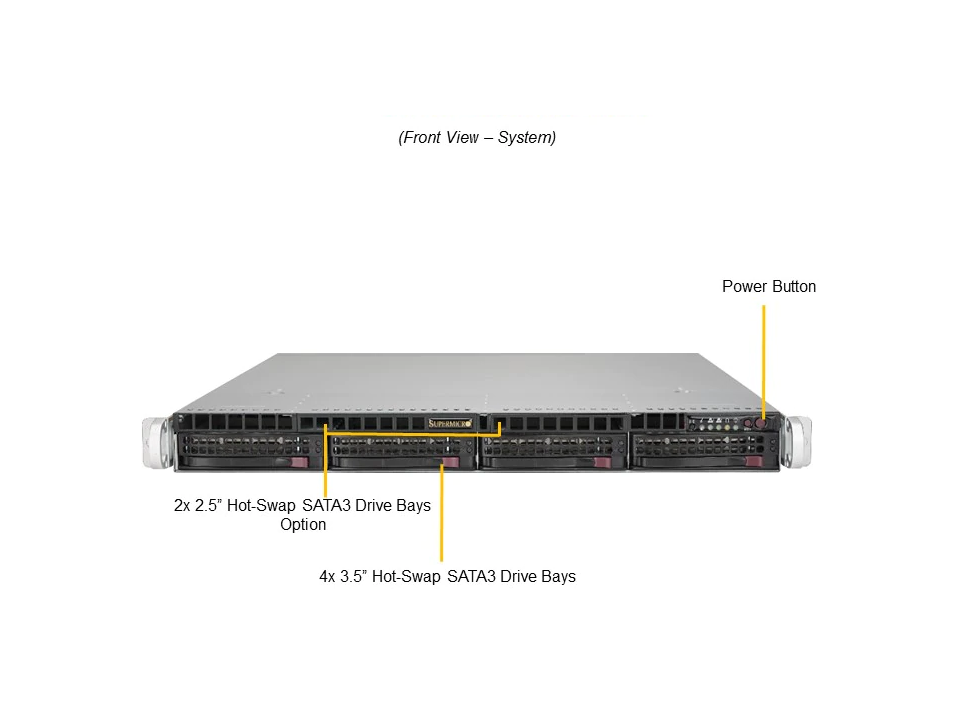

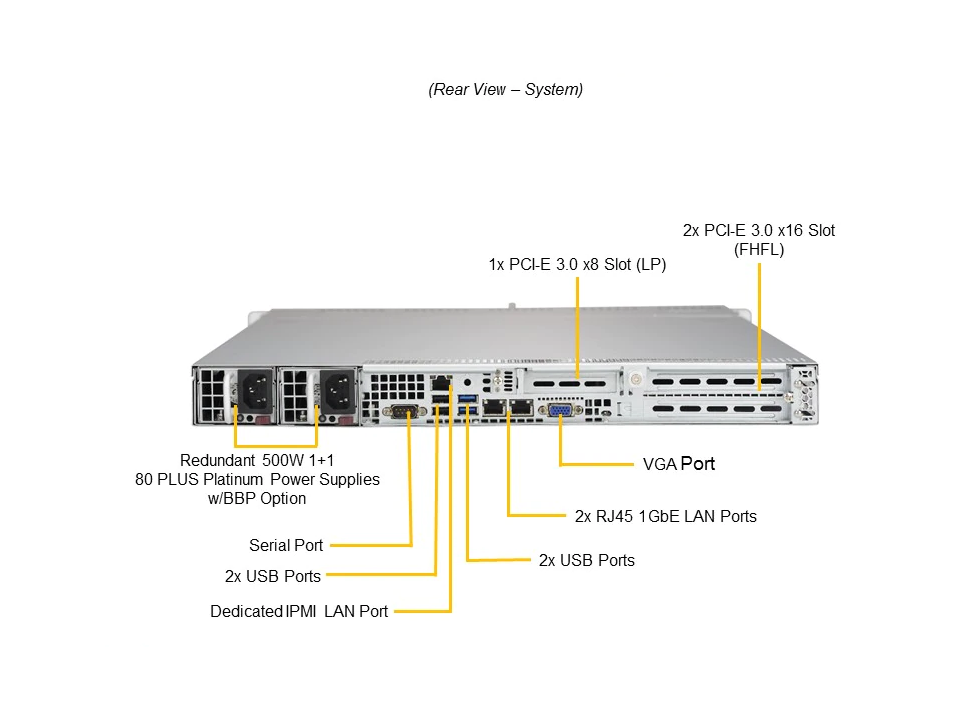

Front View Rear View

Intel Single Xeon E application server

  • Intel C246 chipset providing excellent performance and stability
  • One Intel Xeon E series processor
    • Up to 8 cores and 16MB L3 cache
    • 8 GT/s DMI3
  • Up to 128GB DDR4 ECC unbuffered memory
    • Dual channel memory bus
    • Four DIMM slots for optimal expansion
  • Onboard Intel dual-port Gigabit Ethernet ports
  • Blazing fast NVME PCIe SSD OS storage
  • Three PCI Express v3 expansion slots
  • 1U rack with hotswap & redundant power supply
    • High efficiency Platinum Level power supply
    • SAS3 back plane with four hotswap hard drive bays
    • Optional slim DVD optical reader/writer
    • Redundant cooling with dual blade chassis fans
    • Air duct & fan speed control to reduce noise level
  • Real time monitoring of system health status
  • Serial Console Redirection for remote management
  • Remote Server Management over LAN using IPMI 2.0
  • 64-bit Linux operating system

Three year limited warranty

full specs tech notes

Compare all ASL Lancelot models

Lancelot 1196-T Lancelot 1196-SR
Processor 1 x Xeon® E 2124G (4-core) 1 x Xeon® E 2124G (4-core)
Memory 32GB DDR4-2666 ECC unbuffered 32GB DDR4-2666 ECC unbuffered
Hard Disk 256GB NVME PCIe SSD (OS) 256GB NVME PCIe SSD (OS)
Storage Controller Onboard C246 PCH SATA 6Gbs Broadcom 3108 SAS3/SATA 12Gbs PCI-E RAID
Starting Price
$1,921
$2,354
